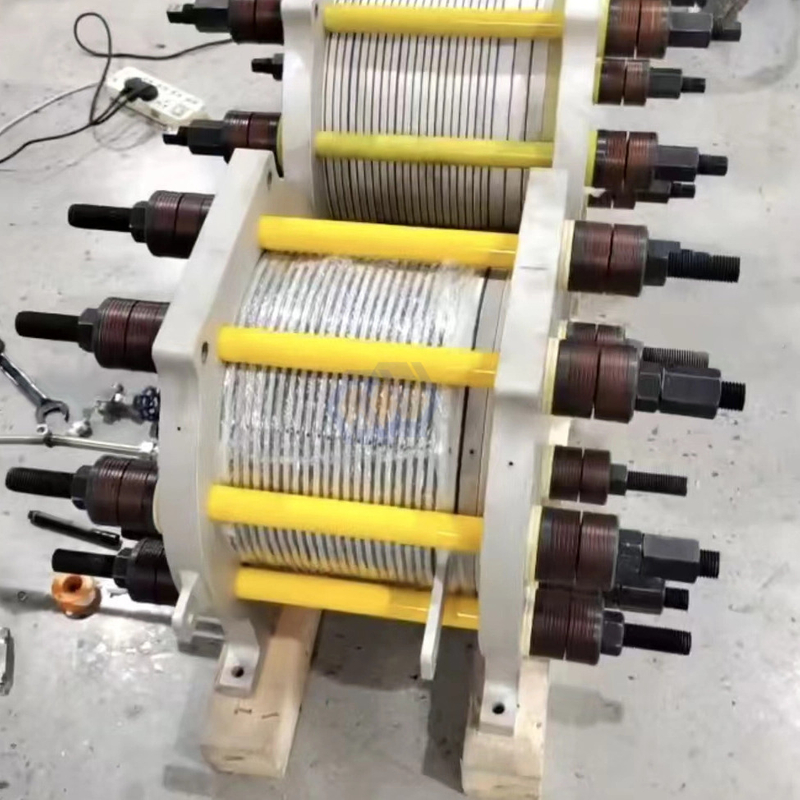

5KW 1Nm3/h Alkali Hydrogen Electrolysis Generator AWE

Pesticide products usually have the product name on the packaging, such as insecticides, fungicides, herbicides, etc. Pesticides can be divided into different classifications based on their targets of action and chemical composition.

Model:
QNALK-1
Brand:
QN

Availability:

Quantity:



Inquire Add to Basket PDF Export

Product Description

Product Parameters

Why choose us

Product Advantages

Factory Photos

6e38d831-508a-4c84-a40b-ebba41c2cf41

Key attributes Brand Name QNALK-60 Place of Origin Shaanxi, China Weight 3t Dimension(L*W*H) 2*1.5*2.6 Function Hydrogen Electrolysis Hydrogen purity 99.8% Hydrogen yield 60NM3/h Oxygen yield 30NM3/h system pressure 1.6~3.2bar Operating temperature 90±5 ℃ Packaging and delivery Selling Units Single item Single package size 3500X2500X3700 cm Lead time Quantity (pieces) 1 - 1 > 1 Lead time (days) 20 To be negotiated Customization options Customized logo (Min. order: 1 piece) Customized packaging (Min. order: 1 piece) Graphic customization (Min. order: 1 piece)

Key attributes

Model Number	QNALK-1	Brand Name	QN
Place of Origin	Shaanxi, China	Product Name	Alkaline water electrolysis stack
Usage scenario	thermal power plant, refinery, petrochemicals, food and beverage, cements, hydrogen refueling station, etc.	Components	end plate, polar plate, PPS membrane, nickel electrodes, gaskets, seals
Hydrogen purity	≥99%	Rated Power	≤4.8 kW
Rated Voltage	48V	Rated Current	40A
Working Pressure	atmospheric (can be customzied)	Water quality	pure water
Wt.	around 300kg	Dimension(LWH)	403030(cm)

Packaging and delivery

Packaging	wooden box
Trade Term	EXW, FOB, CIF, DDP

Lead time

Quantity (pieces)	1 - 1	> 1
Lead time (days)	60	To be negotiated

Customization options

Customized logo (Min. order: 1 piece)

Customized packaging (Min. order: 1 piece)

Key attributes Brand Name QNALK-60 Place of Origin Shaanxi, China Weight 3t Dimension(L*W*H) 2*1.5*2.6 Function Hydrogen Electrolysis Hydrogen purity 99.8% Hydrogen yield 60NM3/h Oxygen yield 30NM3/h system pressure 1.6~3.2bar Operating temperature 90±5 ℃ Packaging and delivery Selling Units Single item Single package size 3500X2500X3700 cm Lead time Quantity (pieces) 1 - 1 > 1 Lead time (days) 20 To be negotiated Customization options Customized logo (Min. order: 1 piece) Customized packaging (Min. order: 1 piece) Graphic customization (Min. order: 1 piece)Key attributes Brand Name QNALK-60 Place of Origin Shaanxi, China Weight 3t Dimension(L*W*H) 2*1.5*2.6 Function Hydrogen Electrolysis Hydrogen purity 99.8% Hydrogen yield 60NM3/h Oxygen yield 30NM3/h system pressure 1.6~3.2bar Operating temperature 90±5 ℃ Packaging and delivery Selling Units Single item Single package size 3500X2500X3700 cm Lead time Quantity (pieces) 1 - 1 > 1 Lead time (days) 20 To be negotiated Customization options Customized logo (Min. order: 1 piece) Customized packaging (Min. order: 1 piece) Graphic customization (Min. order: 1 piece)

Why choose us

Customization capability

It can achieve wide load regulation, low-energy operation, and rapid response according to customer operating conditions (hydrogen consumption, energy type, budget, etc.), and provide customized solutions
Our own professional R&D team

Our own professional R&D team is composed of domestic research talents from Tsinghua University, Peking University, Fudan University, Xi'an Jiaotong University, etc
Core R&D advantages

Mastering the research and development of core materials such as catalysts and catalytic electrodes, and controlling key links in the industrial chain
Having multiple patented technologies

focusing on key core components and material system layout technology patents for hydrogen production through water electrolysis, building a patent moat
Having mature processing production lines

fully equipped with modern production facilities to achieve stable supply of products and guarantee product quality
Qualification certificate

The company has currently passed ISO9001, ISO45001, ISO14000 system certification and EU CE certification

Product Advantages

ALK electrolytic cell

1. Strong large-scale hydrogen production capability: mature technology, single machine power can be made very large, suitable for industrial grade, centralized green hydrogen production
2. Good operational stability: The electrolyte is alkaline solution (KOH/NaOH), the system is stable, and it is not easily affected by impurities and water quality fluctuations
3. Low cost of electrode materials: using non precious metal electrodes (mainly nickel based) avoids the problem of high costs in large-scale applications
4. Long lifespan: Long operating lifespan, suitable for long-term operation in the chemical and power industries
5. Compatible with renewable energy: able to adapt well to fluctuating power sources such as photovoltaics and wind power, but with relatively slow dynamic response speed
PEM electrolytic cell

1. High purity of hydrogen: Hydrogen purity can reach 99.99%
2. High current density and better efficiency: large hydrogen production per unit area, small footprint
3 .Fast dynamic response: Fast start stop, able to adapt well to fluctuating renewable energy sources such as photovoltaics and wind power
4. Modular and compact in size: The device is compact and suitable for distributed applications or scenarios with limited space
5. High pressure hydrogen production: hydrogen gas above 30 bar can be obtained without additional compression, reducing subsequent costs
AEM electrolytic cell

1. High cost potential: It can avoid the extensive use of precious metals in PEM while maintaining high efficiency
2. Material friendly: can use low-cost metal catalysts, etc
3. Similar in structure to PEM: with the potential for compact and modular design, it can adapt to distributed hydrogen production
4. Balancing advantages: theoretically combining the low cost of alkaline electrolysis cells with the high performance of PEM
5. Great development potential: has become a research hotspot in recent years, and is expected to reduce the cost of green hydrogen in the future
BOP auxiliary system

1. Gas liquid separation system: Separate the gas generated during the electrolysis process from the entrained water mist/droplets, prevent water from being carried in the hydrogen/oxygen gas, ensure the purity of the subsequent hydrogen gas, and prevent electrolyte loss
2. Gas purification system: further remove impurities (water vapor, electrolyte, trace oxygen/hydrogen), ensure hydrogen purity, and output high-purity hydrogen gas
3 .Water and alkali replenishment system: Ensure stable electrolyte concentration and liquid level (mainly for alkaline electrolysis tanks ALK), and pure water replenishment system for PEM electrolysis tanks
4. Hydrogen production power supply: converts alternating current to direct current, provides stable power supply, and ensures electrolysis efficiency
5. Control system: system operation monitoring, start stop control; Real time monitoring of parameters such as pressure, flow rate, temperature, and gas concentration; Safety interlock, explosion-proof protection
6. Pure water machine: provides high-purity water required for electrolysis, avoiding impurities from damaging the electrolytic cell
7. Cooling unit: controls the operating temperature of electrolytic cells, power supplies, gas compressors and other equipment to ensure system safety and extend service life
