Product Details

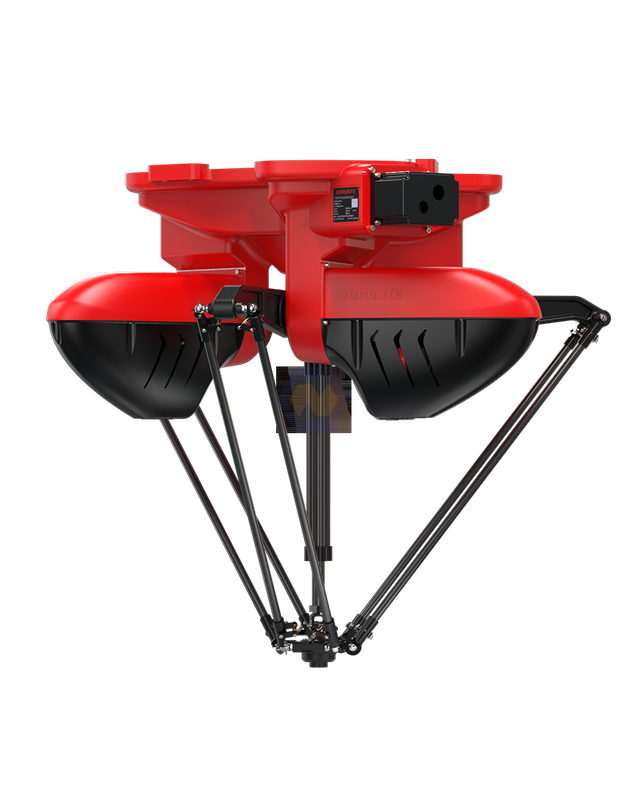

BRTIRPL1003A is a four-axis robot for assembly, sorting and other application scenarios of light, small and scattered materials. The maximum arm length is 1000mm and the maximum load is 3kg. The repeat positioning accuracy is ±0.1mm..
Main Specification
Arm Span(mm): 1000
Repeatability(mm): ±0.1
Max Payload(kg): 3
Power Supply(kVA): 3.18
Boday Weight(kg): ~104
Item | Range | rhythm(times/min) | |
Master Arm | upper | 46.7° | stroke：25/305/25mm |
hem | 86.6° | stroke：25/305/25mm | |
Wrist | J4 | ±360° | 150 times/min |
