Product Details

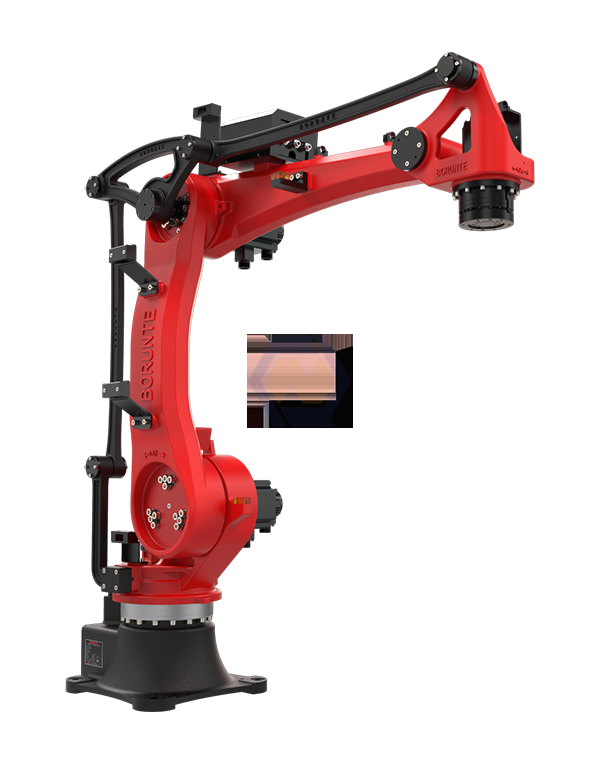

BRTIRPZ1825A is a four-axis robot for for some monotonous,frequent and repetitive long-term operations or operations in dangerous and harsh environments. The maximum arm length is 1800mm. The maximum load is25kg, it's flexible with multiple degrees of freedom. Suitable for loading and unloading, handling, dismantling and stacking etc. The repeat positioning accuracy is ±0.08mm.

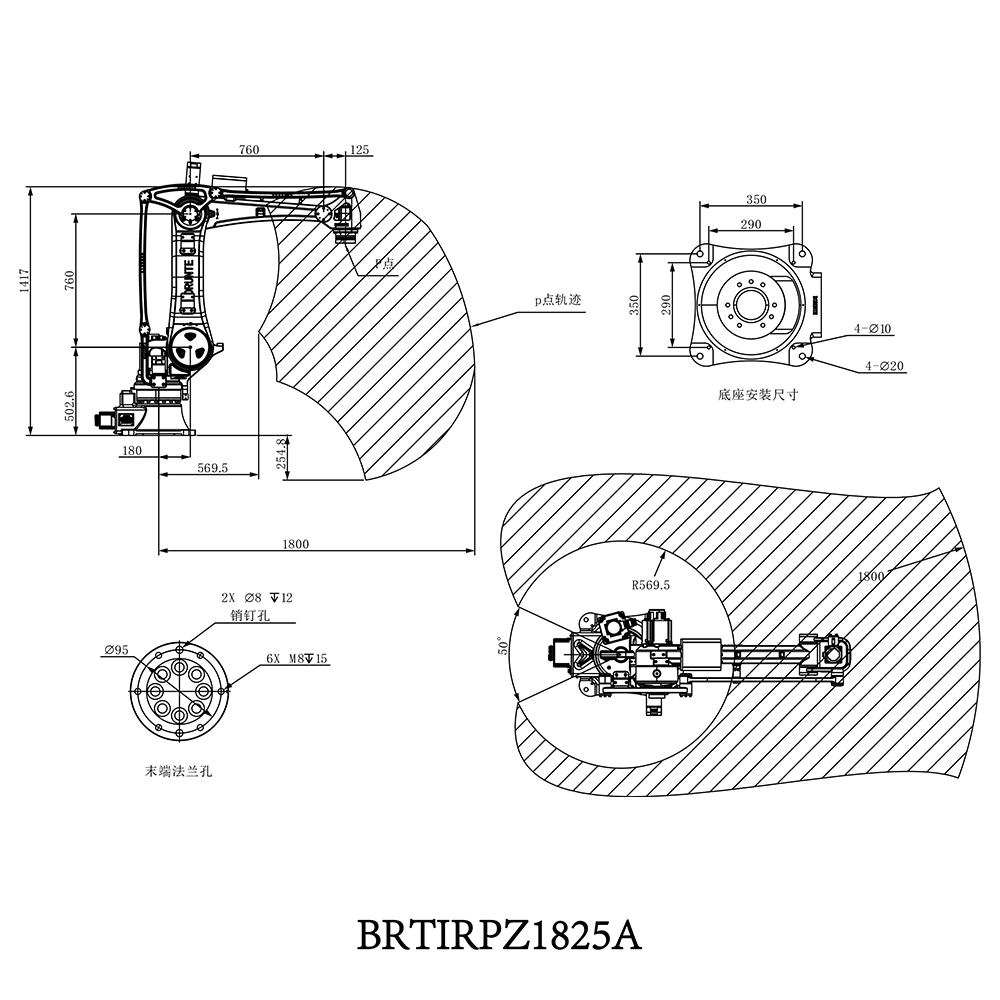

Main Specification
Arm Span(mm): 1800
Repeatability(mm): ±0.08
Max Payload(kg): 25
Power Supply(kVA): 7.33
Boday Weight(kg): ~256
Item | Range | Max.speed | |
Arm | J1 | ±155° | 175°/s |
J2 | -78°/+30° | 135°/s | |
J3 | -62°/+70° | 123°/s | |
Wrist | J4 | ±360° | 300°/s |
R34 | 65°-170° | / |
