Product Details

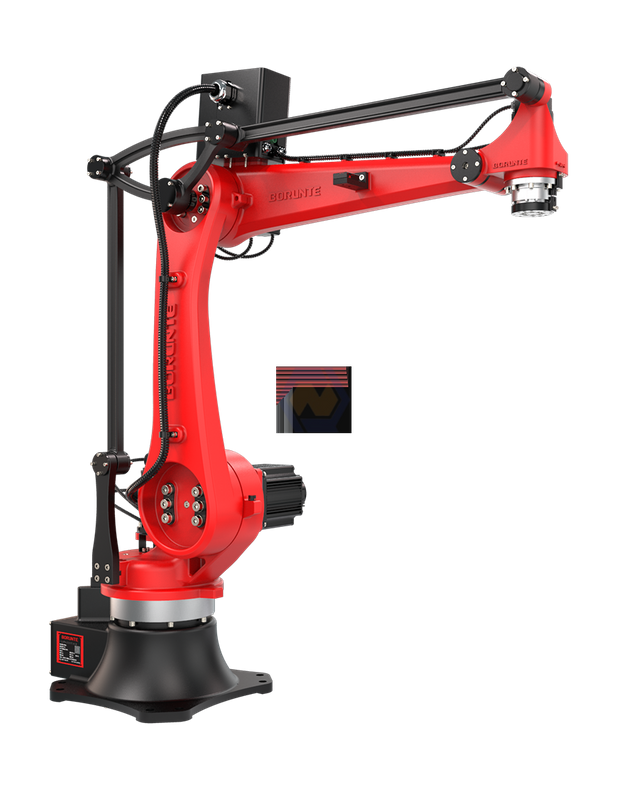

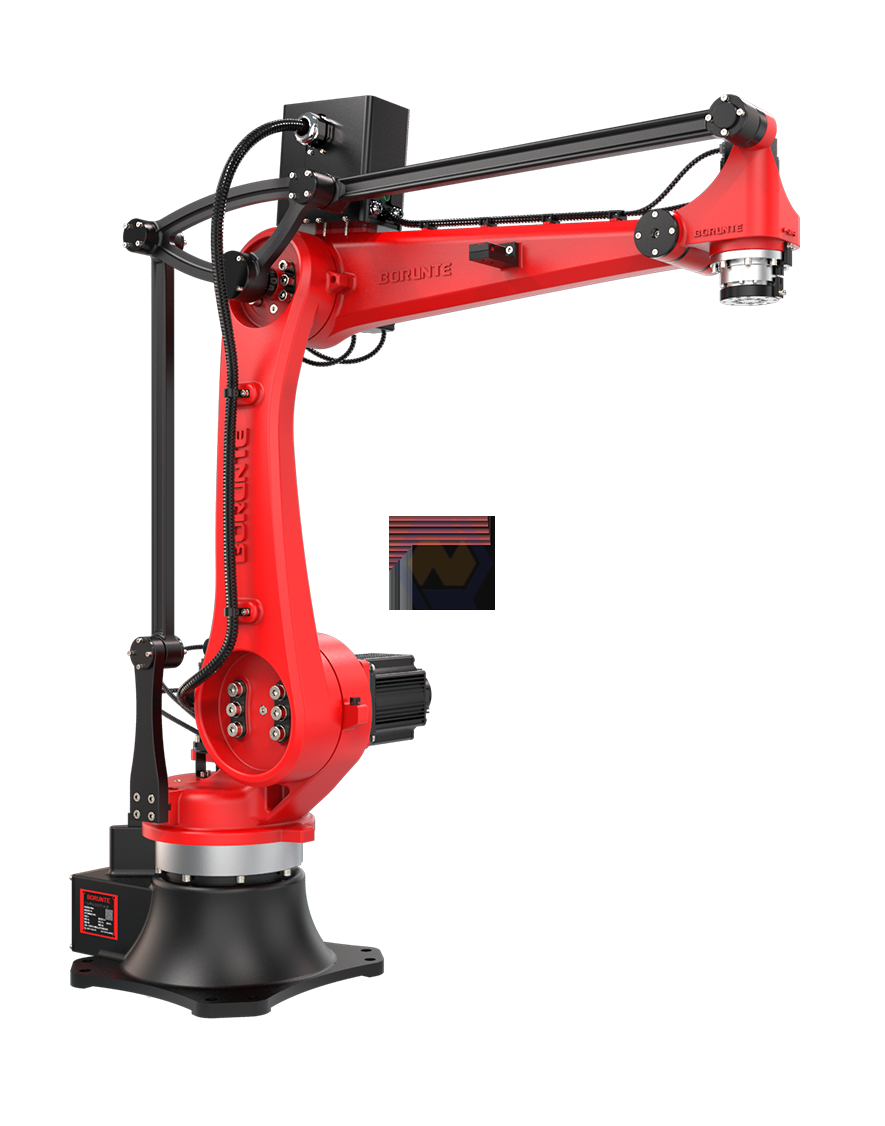

BRTIRPZ1508A is a four-axis robot driven by a fully servo motor, with fast response speed and high accuracy. Its maximum load is 8Kg and the maxium arm span is 1413mm. Achieve a wide range of flexible and precise movements with a compact structure. Purpose: Substitute for people to do certain monotonous, frequent, and repetitive long-term tasks, or tasks in dangerous and harsh environments, such as in stamping machines, pressure casting, heat treatment, coating, plastic product forming, mechanical processing, and simple assembly processes, as well as in departments such as the atomic energy industry, to complete the handling or process operations of harmful materials to human health, and perfect the loading and unloading process. The repeat positioning accuracy is ±0.05mm.

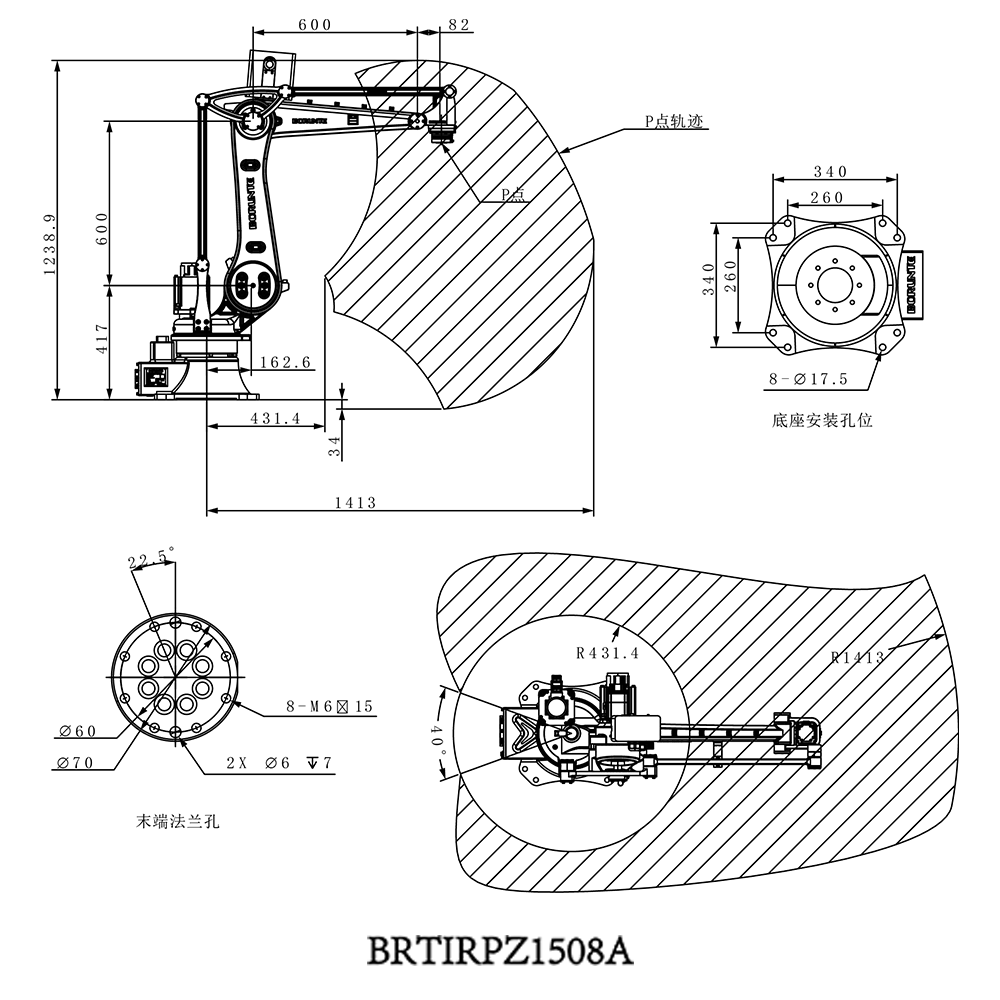

Main Specification
Arm Span(mm): 1413
Repeatability(mm): ±0.05
Max Payload(kg): 8
Power Supply(kVA): 3.18
Boday Weight(kg): ~150
Item | Range | Max.speed | |
Arm | J1 | ±160° | 219.8°/s |
J2 | -68°/+23° | 222.2°/s | |
J3 | -70°/+65° | 272.7°/s | |
Wrist | J4 | ±360° | 412/5°/s |
R34 | 60°-165° | / |
