Product Details

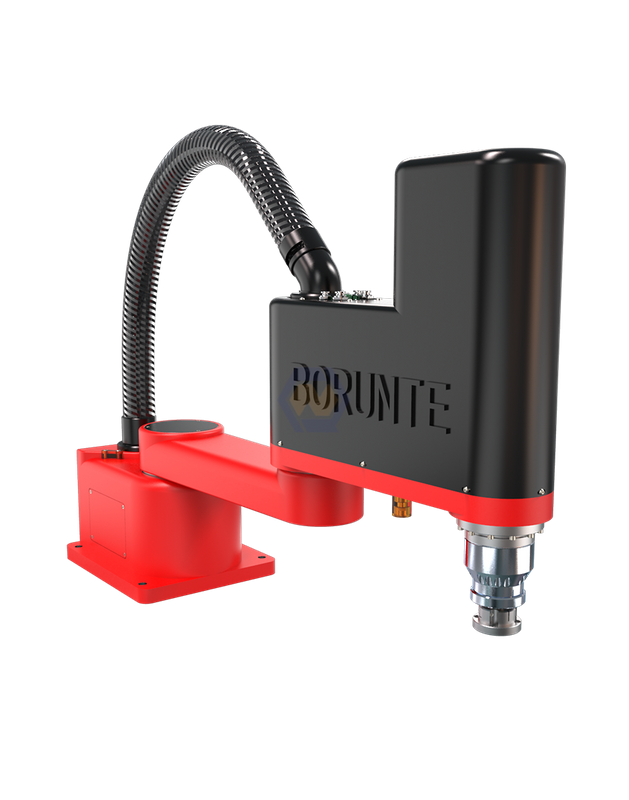

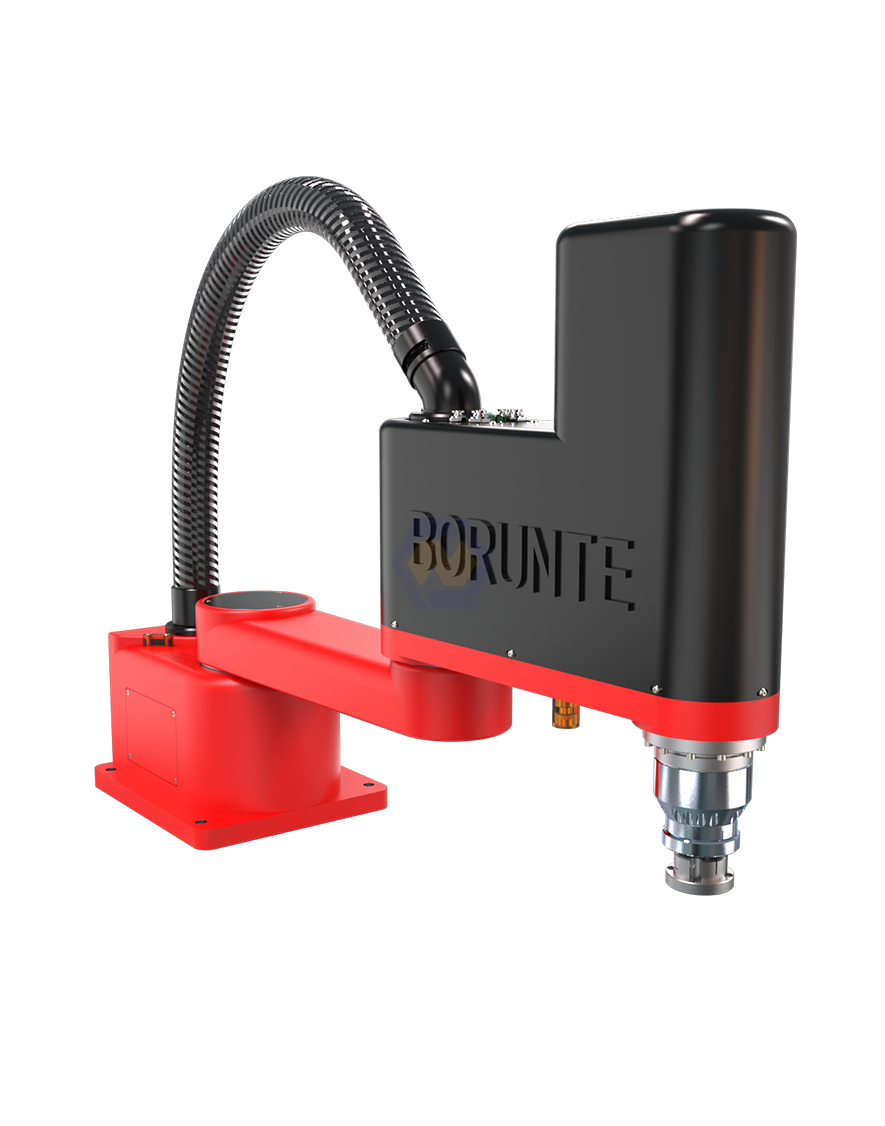

BRTIRSC0603A is a four-axis robot for for for some monotonous, frequent and repetitive long-term operations.The maximum arm length is 600mm. The maximum load is 3kg. It's flexible with multiple degrees of freedom. Suitable for printing and packaging, metal processing, textile home furnishing, electronic equipment, and other fields. The protection grade reaches IP40. The repeat positioning accuracy is ±0.02mm.
Main Specification
Arm Span(mm): 600
Repeatability(mm): ±0.02
Max Payload(kg): 3
Power Supply(kVA): 5.62
Boday Weight(kg): ~28
Item | Range | Max.speed | |
Arm | J1 | ±128° | 480°/s |
J2 | ±145° | 576°/s | |
J3 | 150mm | 900mm/s | |
Wrist | J4 | ±360° | 696°/s |
