Product Details

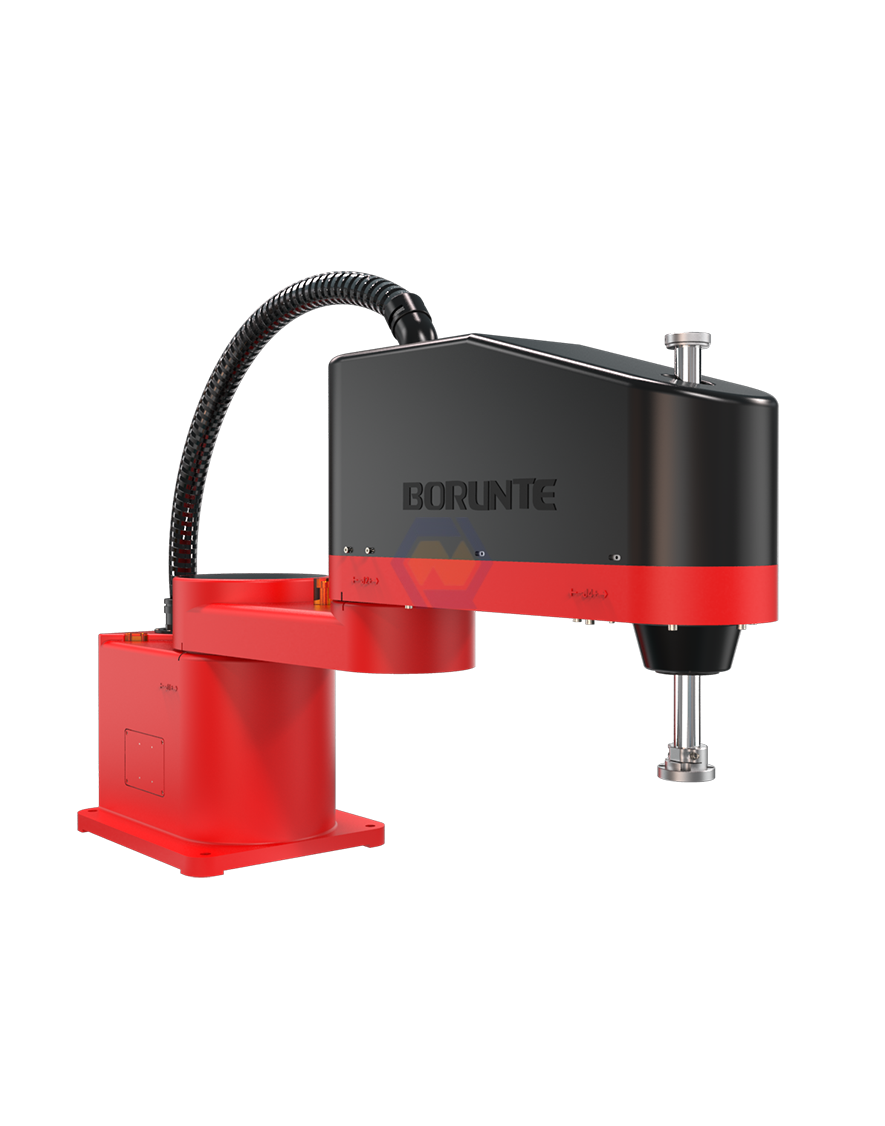

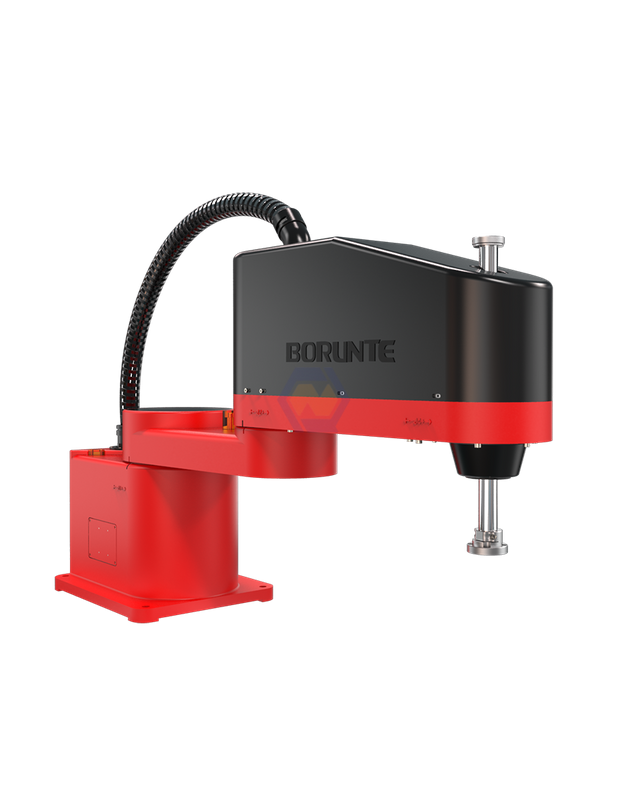

BRTIRSC0810A is a four-axis robot for for some monotonous, frequent and repetitive long-term operations.The maximum arm length is 800mm. The maximum load is 10kg. It's flexible with multiple degrees of freedom. Suitable for printing and packaging, metal processing, textile homefurnishing, electronic equipment, and other fields. The repeat positioning accuracy is ±0.05mm.
Main Specification

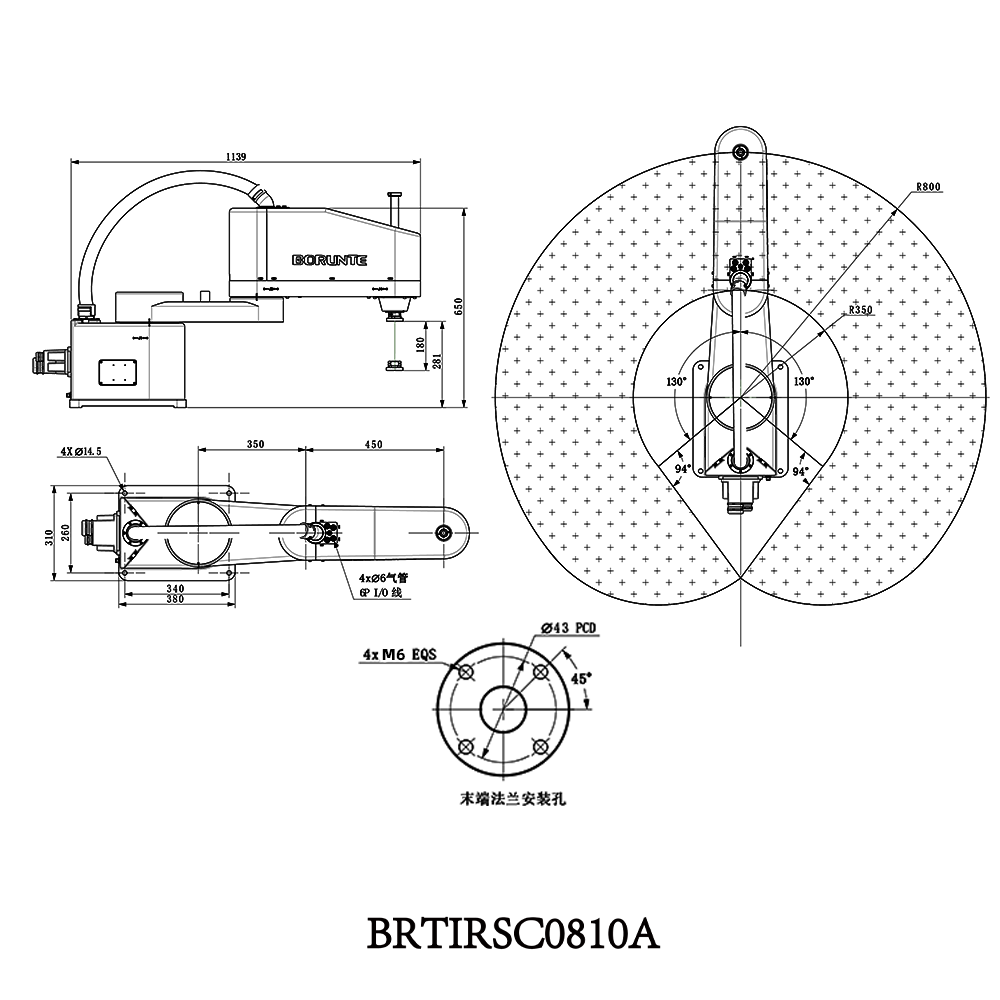

Arm Span(mm): 800
Repeatability(mm): ±0.05
Max Payload(kg): 10
Power Supply(kVA): 4.3
Boday Weight(kg): ~73
Item | Range | Max.speed | |
Arm | J1 | ±130° | 300°/s |
J2 | ±140° | 473.5°/s | |
J3 | 180mm | 1134mm/s | |
Wrist | J4 | ±360° | 1875°/s |
