Product Details

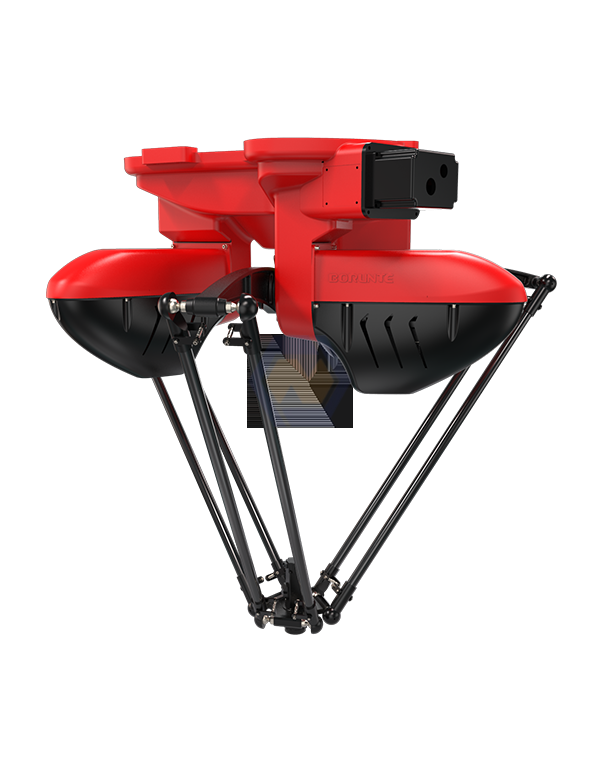

BRTIRPL1215A is a four-axis robot for the assembly, sorting, and other application scenarios of scattered materials with medium to large loads. It can be paired with vision and has a 1200mm arm span, with a maximum load of 15kg. The repeat positioning accuracy is ±0.1mm.
Main Specification
Arm Span(mm): 1200
Repeatability(mm): ±0.1
Max Payload(kg): 15
Power Supply(kVA): 4.08
Boday Weight(kg): ~105
Item | Range | rhythm(times/min) | |
Master Arm | upper | 35° | stroke：25/305/25mm |
hem | 83° | okg 143 times/min 5kg 121 times/min | |
Wrist | J4 | ±360° | 10kg 107 times/min 15kg 94 times/min |
