Product Details

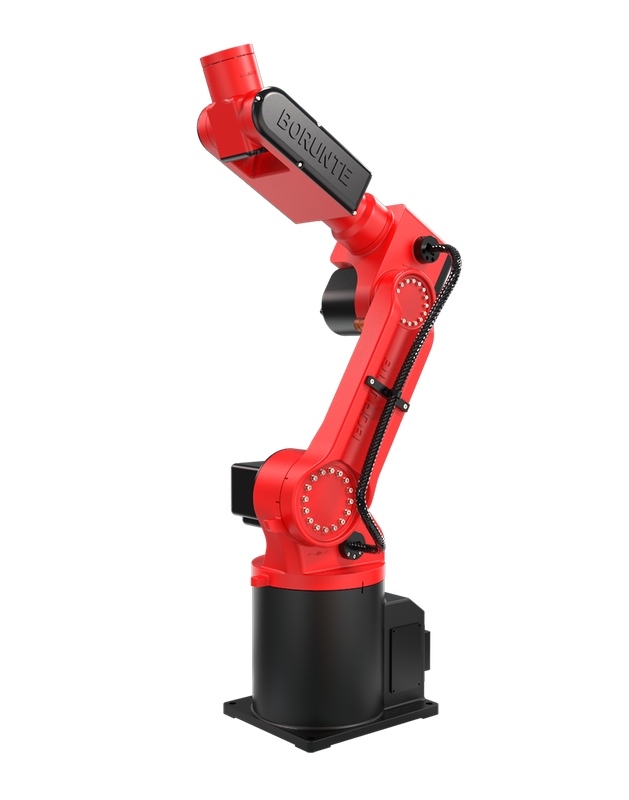

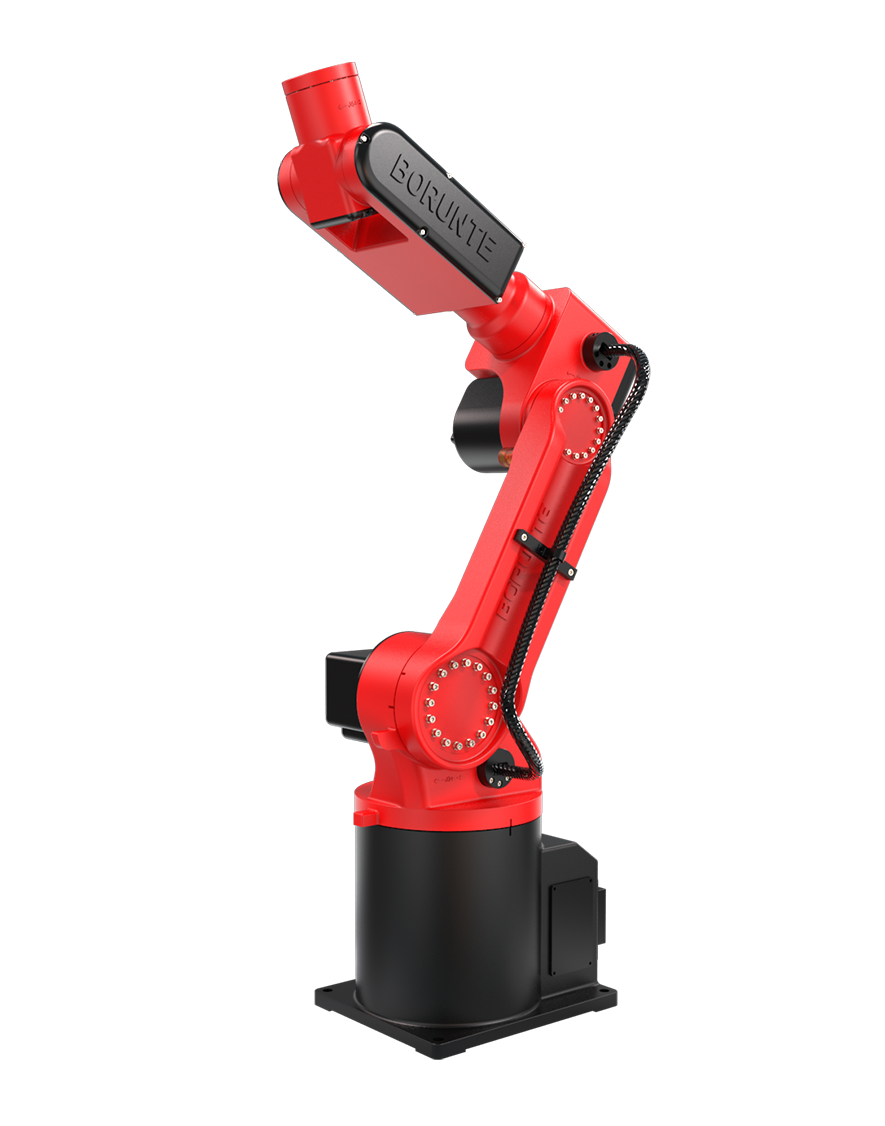

BRTIRUS0805A type robot is a six-axis robot, The whole operation system is simple, compact structure, high position accuracy and has good dynamic performance. The load ability is 5kg, especially suitable for injection molding, taking, stamping, handling, loading and unloading, assembly, etc. It is suitable for injection molding machine range from 30T-250T. The protection grade reaches IP54. Dust-proof and water-proof. The repeat positioning accuracy is ±0.05mm.

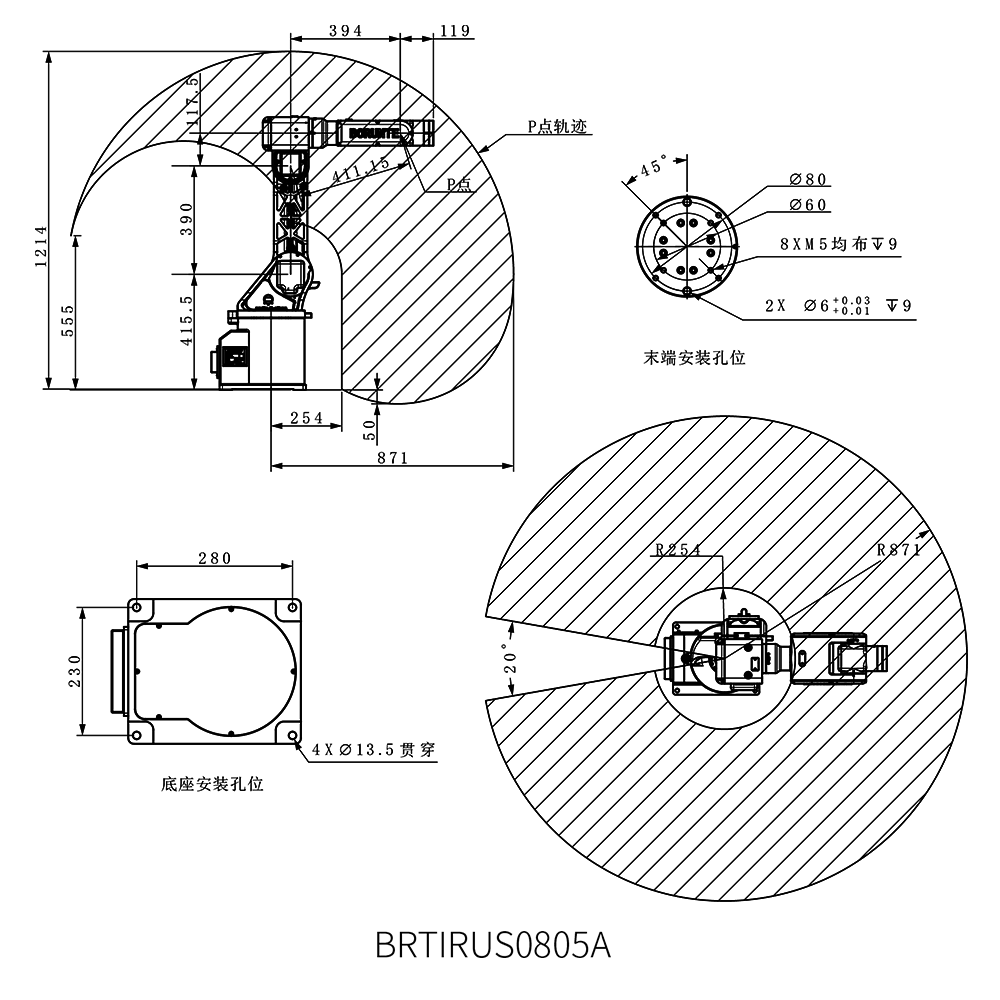

Main Specification
Arm Span(mm): 990
Repeatability(mm): ±0.05
Max Payload(kg): 5
Power Supply(kVA): 3.67
Boday Weight(kg): ~ 53
Item | Range | Max.speed | |
Arm | J1 | ±170° | 237°/s |
J2 | -98°/+80° | 267°/s | |
J3 | -80°/+95° | 370°/s | |
Wrist | J4 | ±180° | 337°/s |
J5 | ±120° | 600°/s | |
J6 | ±360° | 588°/s |
