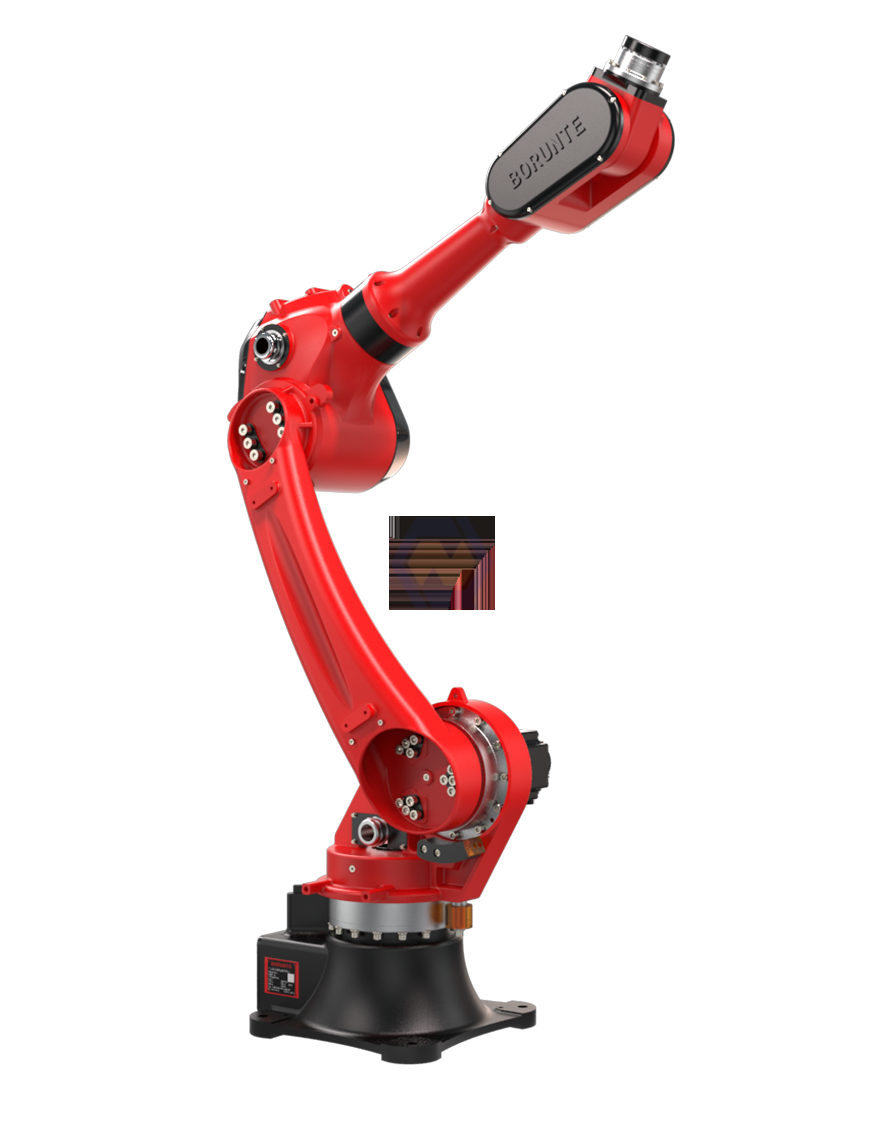

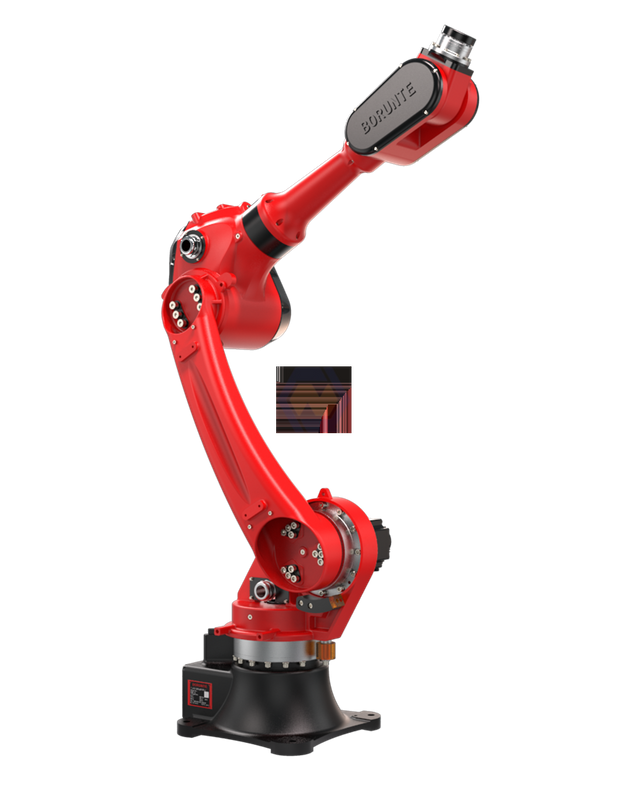

BRTIRUS1820A is a six-axis robot with high degree of freedom, The max load is 20kg, the maximum arm length is 1895 mm. Light-weight arm with compact and streamlined mechanical structure. It enables flexible operation in a narrow workspaces during high-speed motion, fully meeting the requirements of flexible production. Suitable for loading/unloading, injection machine, die casting, assembling, coating industry, detection etc. It is suitable for injection molding machine range from 500T-1300T. The wrist protection grade reaches IP54. Dust-proof and water-proof. The repeat positioning accuracy is ±0.05mm.
Main Specification

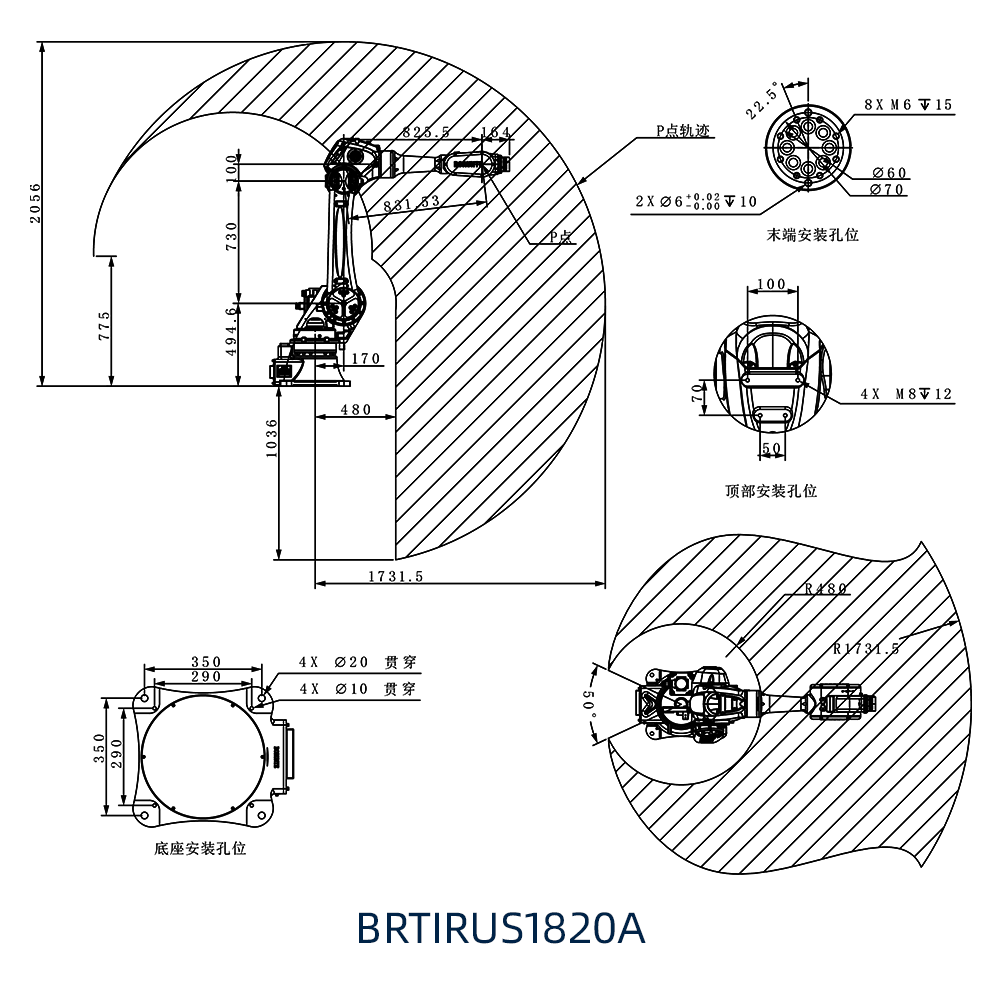

Arm Span(mm): 1895
Repeatability(mm): ±0.05
Max Payload(kg): 20
Power Supply(kVA): 5.87
Boday Weight(kg): ~230
Item | Range | Max.speed | |
Arm | J1 | ±155° | 110°/s |
J2 | -140°/+65° | 146°/s | |
J3 | -75°/+110° | 134°/s | |
Wrist | J4 | ±180° | 273°/s |
J5 | ±115° | 240°/s | |
J6 | ±360° | 375°/s |
