Product Details

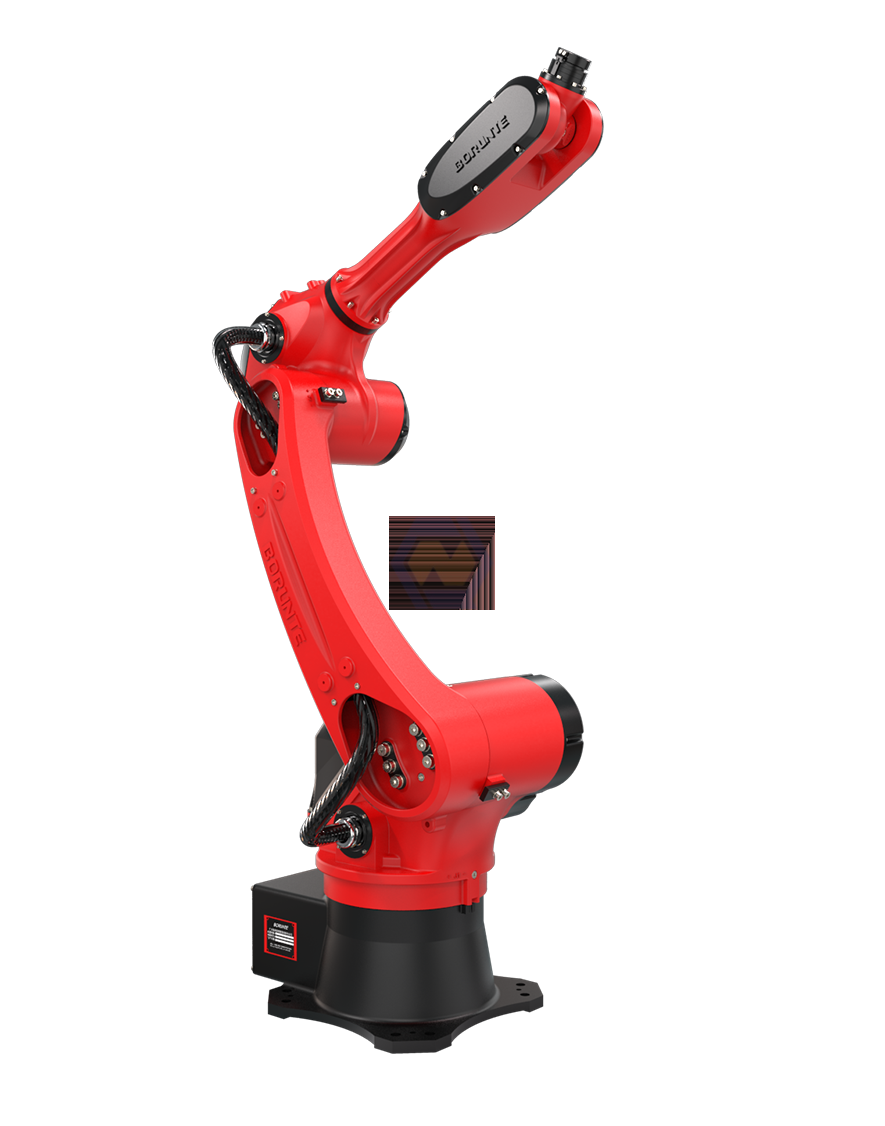

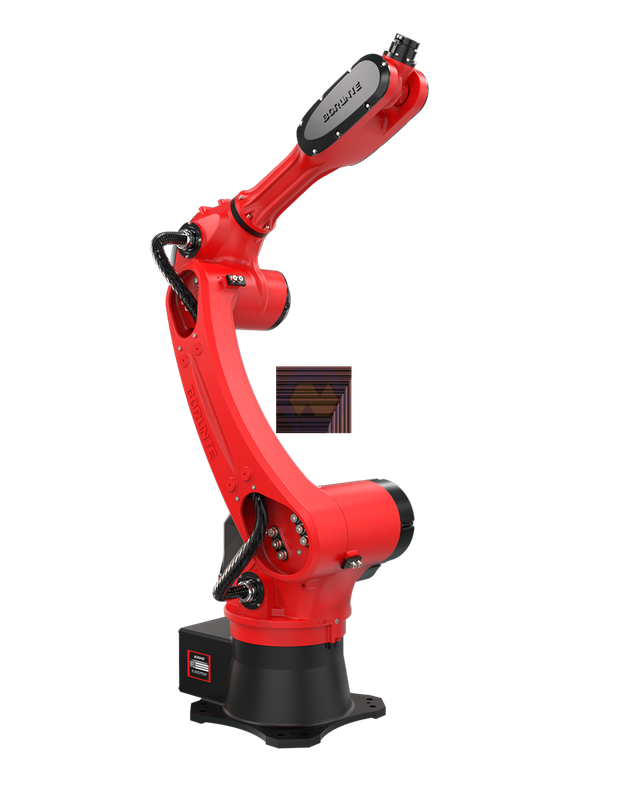

BRTIRUS1510A is a six-axis robot with high degree of freedom, The max load is 10kg, the maximum arm length is 1578 mm. Light-weight arm with compact and streamlined mechanical structure. It enables flexible operation in a narrow workspaces during high-speed motion, fully meeting the requirements of flexible production. Suitable for painting, welding, molding, stamping, forging, handling, loading, assembling, etc. It adopts HC control system. It is suitable for injection molding machine range from 200T-600T. The protection grade reaches IP54. Dust-proof and water-proof. The repeat positioning accuracy is ±0.05mm.
Main Specification

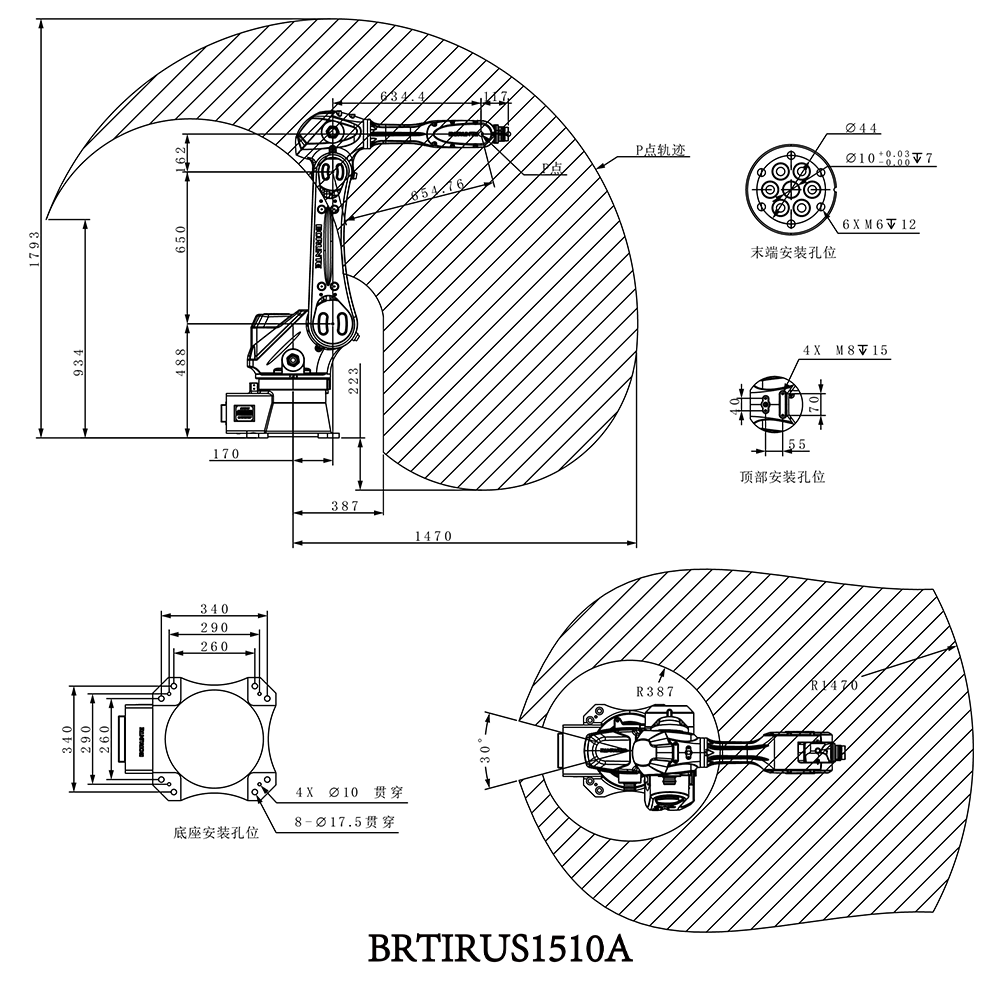

Arm Span(mm): 1578
Repeatability(mm): ±0.05
Max Payload(kg): 10
Power Supply(kVA): 5.06
Boday Weight(kg): ~152
Item | Range | Max.speed | |
Arm | J1 | ±165° | 190°/s |
J2 | -95°/+70° | 173°/s | |
J3 | -85°/+75° | 223°/s | |
Wrist | J4 | ±180° | 254°/s |
J5 | ±115° | 270°/s | |
J6 | ±360° | 342°/s |
