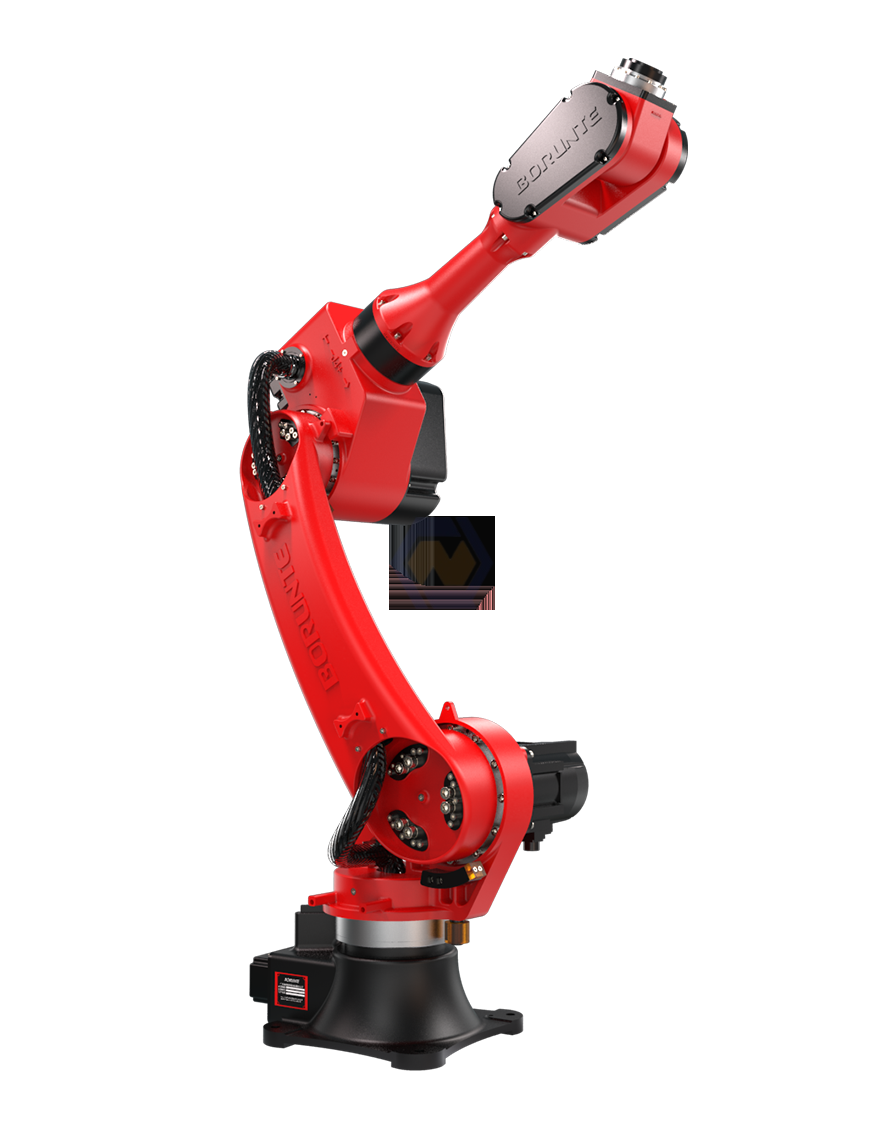

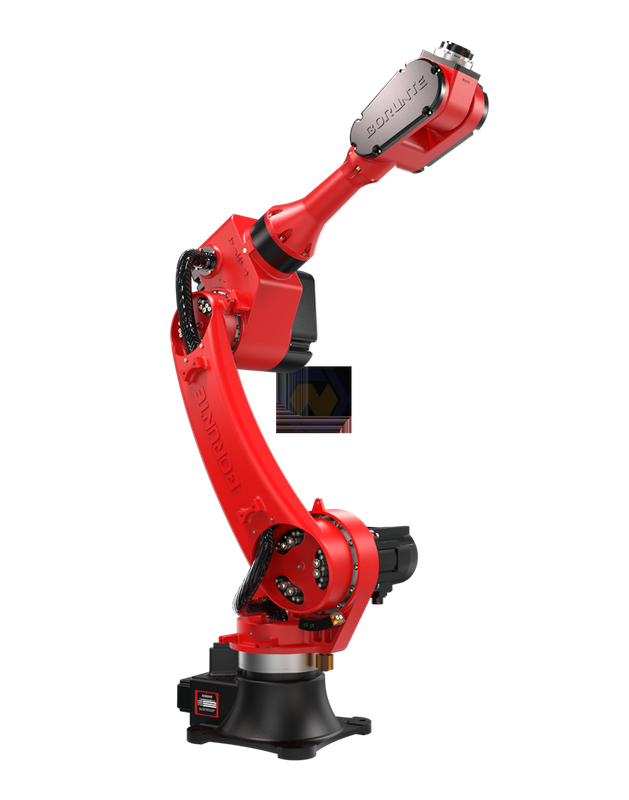

BRTIRUS2030A is a six-axis robot with high degree of freedom, The max load is 30kg, the maximum arm length is 2068 mm. Suitable for loading/unloading,injection part taking, assembling, etc.Dust-proof and water-proof. The repeat positioning accuracy is ±0.08mm.
Main Specification
Arm Span(mm): 2068
Repeatability(mm): ±0.08
Max Payload(kg): 30
Power Supply(kVA): 6.11
Boday Weight(kg): ~310
Item | Range | Max.speed | |
Arm | J1 | ±150° | 102°/s |
J2 | -90°/+70° | 103°/s | |
J3 | -55°/+105° | 123°/s | |
Wrist | J4 | ±180° | 245°/s |
J5 | ±115° | 270°/s | |
J6 | ±360° | 337°/s |
