Product Details

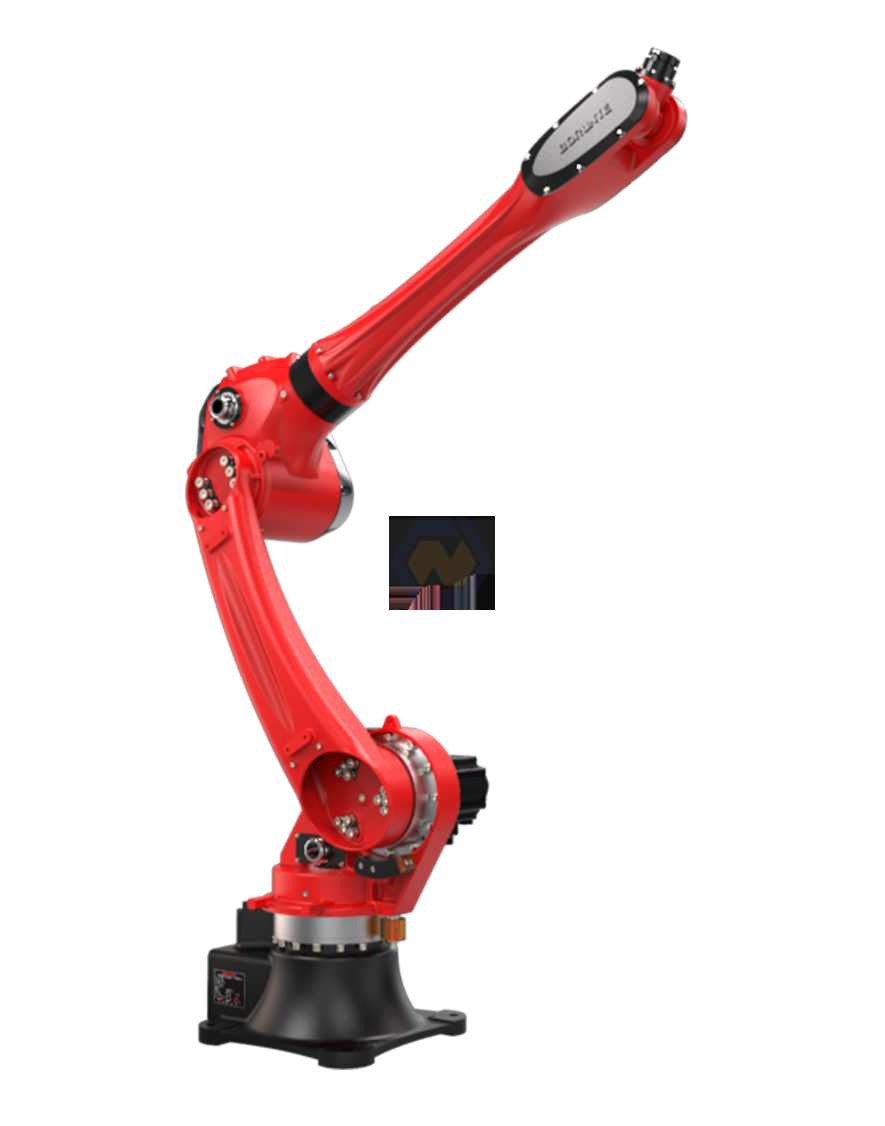

BRTIRUS2110A is a six-axis robot with high degree of freedom, The max load is 10kg, the maximum arm length is 2131 mm. Suitable for loading/unloading, welding, assembling, etc.Dust-proof and water-proof. The repeat positioning accuracy is ±0.05mm.

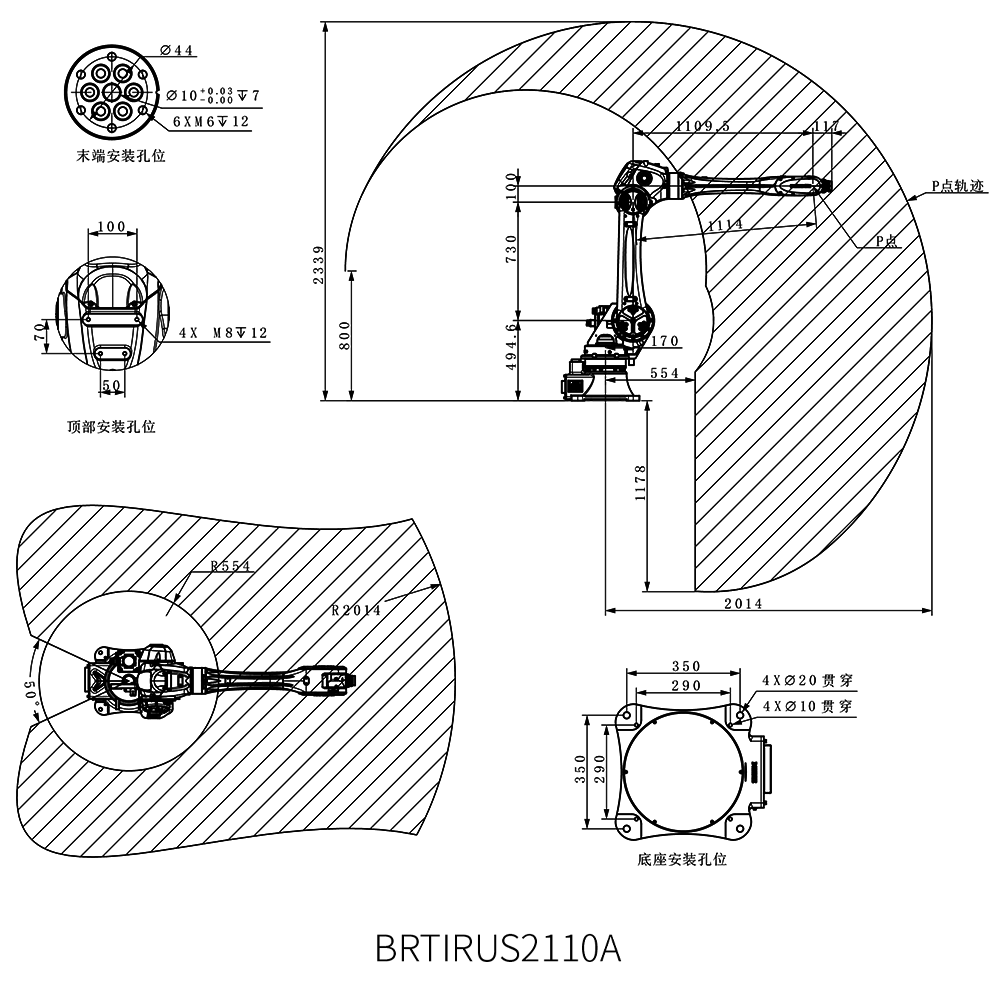

Main Specification
Arm Span(mm): 2131
Repeatability(mm): ±0.05
Max Payload(kg): 10
Power Supply(kVA): 6.48
Boday Weight(kg): ~230
Item | Range | Max.speed | |
Arm | J1 | ±155° | 110°/s |
J2 | -140°/+65° | 146°/s | |
J3 | -75°/+110° | 134°/s | |
Wrist | J4 | ±180° | 273°/s |
J5 | ±115° | 300°/s | |
J6 | ±360° | 342°/s |
