Product Details

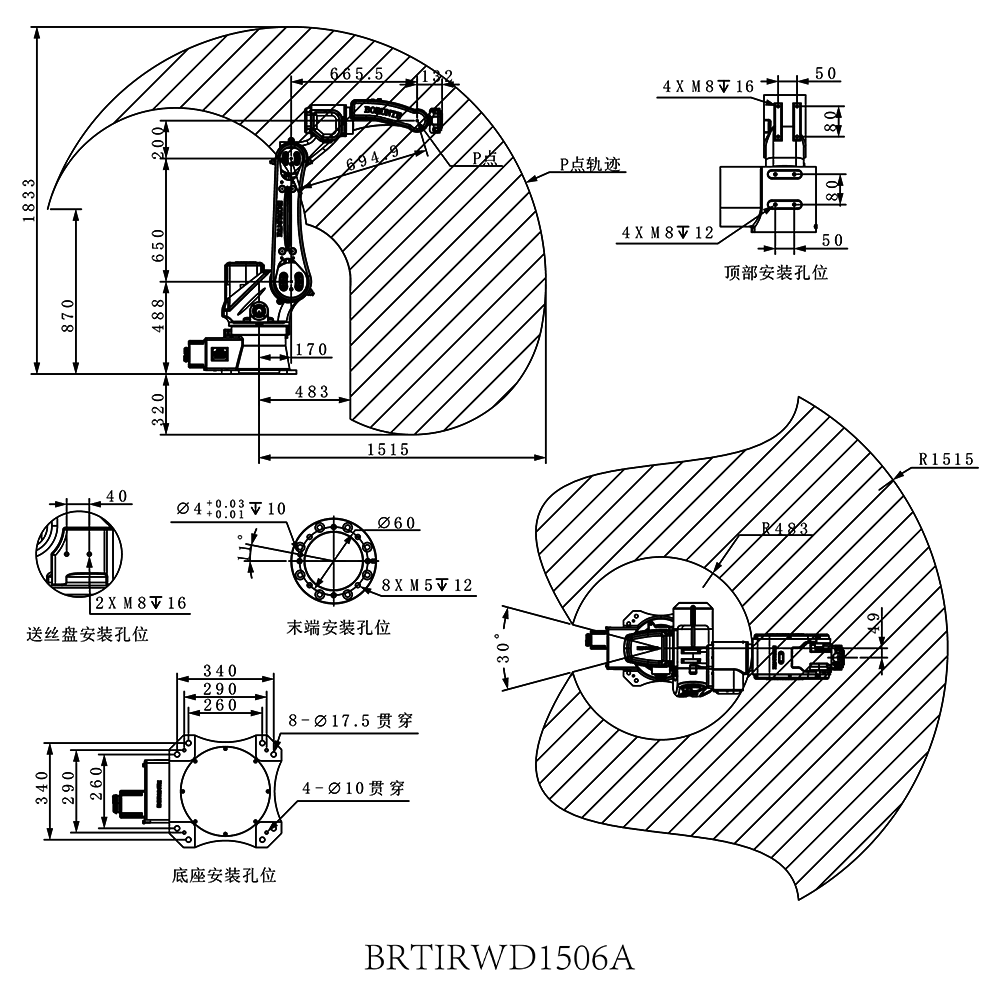

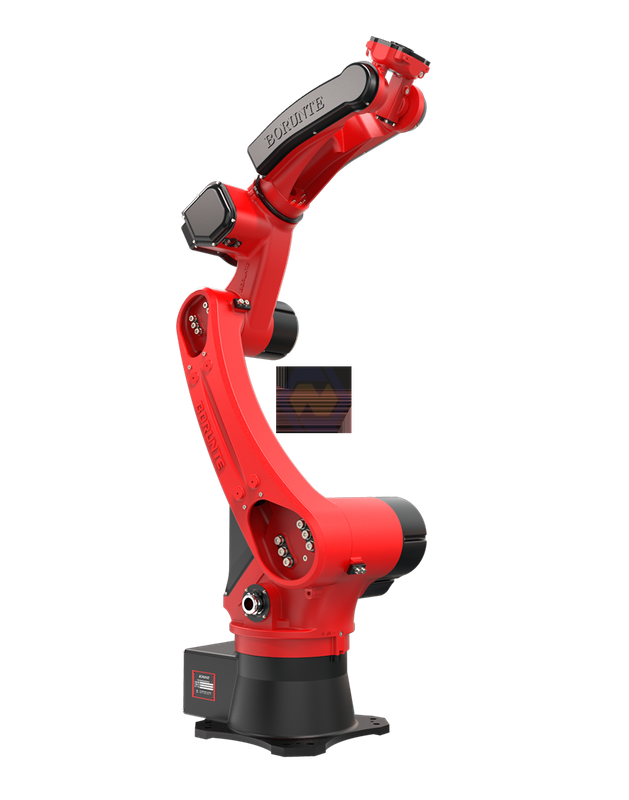

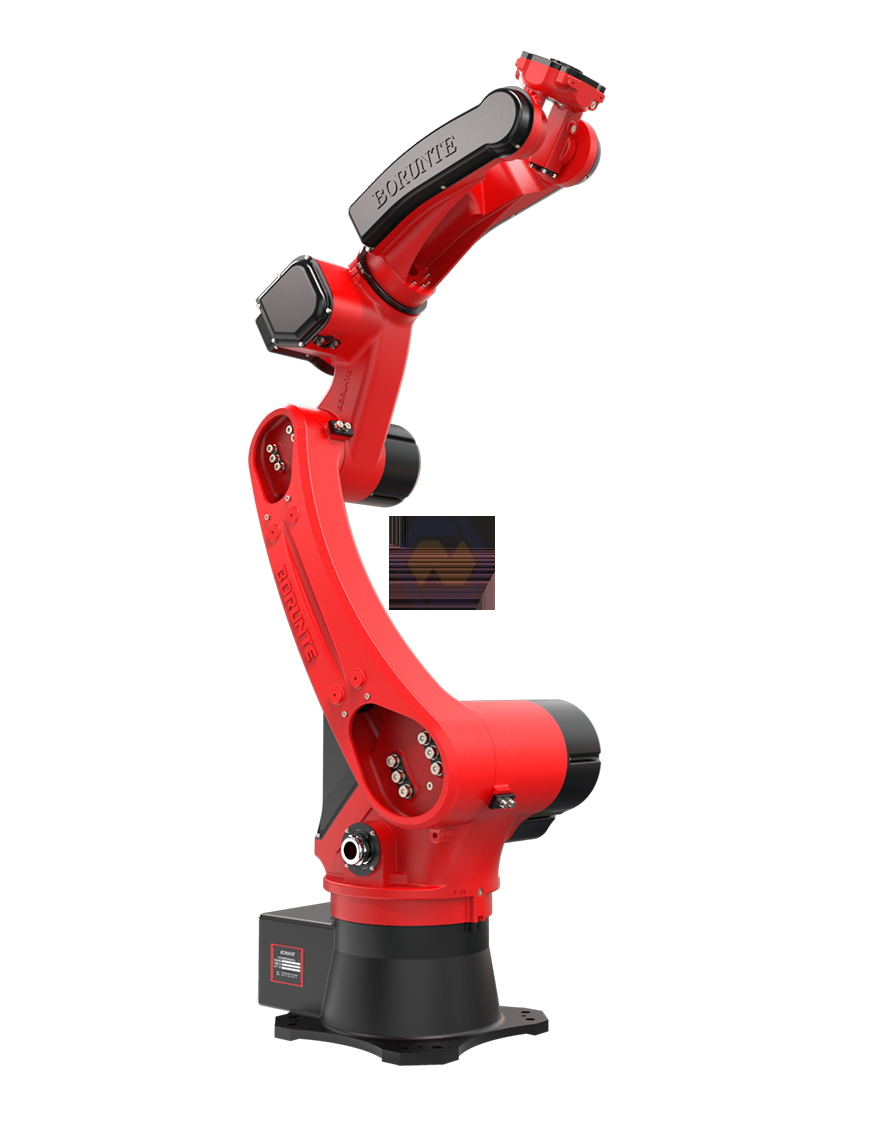

BRTIRWD1506A is a six-axis robot developed for welding industry. This type features compact structure, light weight, and low volume.The max load is 6kg, the maximum arm length is 1647 mm. The repeat positioning accuracy is ±0.08mm.
Main Specification
Arm Span(mm): 1647
Repeatability(mm): ±0.05
Max Payload(kg): 6
Power Supply(kVA): 4.64
Boday Weight(kg): ~166
Item | Range | Max.speed | |
Arm | J1 | ±165° | 163°/s |
J2 | -100°/+70° | 149°/s | |
J3 | ±80° | 223°/s | |
Wrist | J4 | ±150° | 169°/s |
J5 | ±110° | 270°/s | |
J6 | ±360° | 398°/s |
