Product Details

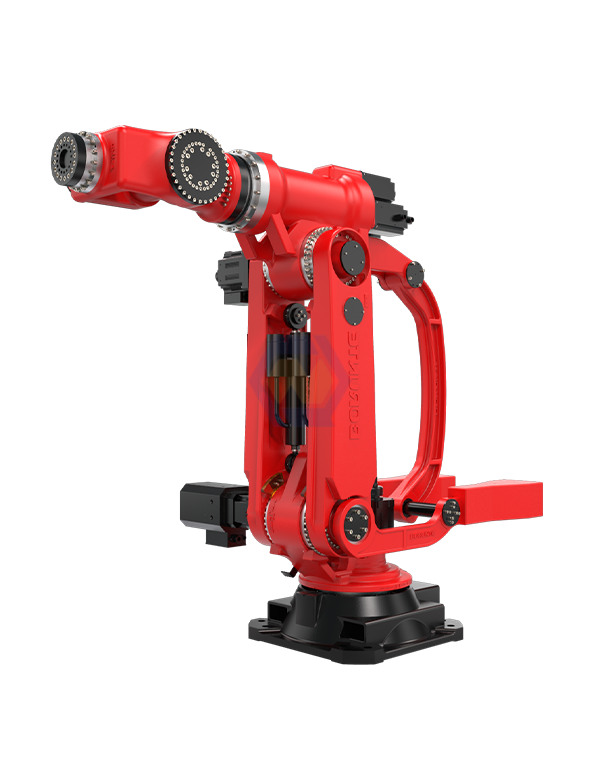

BRTIRRUS3012C is a six-axis robot developed for scenarios such as heavy material handling, loading/unloading. The max load is 1000kg, the maximum arm span is 3313 mm. The repeat positioning accuracy is ±0.1mm.
Main Specification
Arm Span(mm): 3313
Repeatability(mm): ±0.1
Max Payload(kg): 1000
Power Supply(kVA): 13.8
Boday Weight(kg): ~5200
Item | Range | Max.speed | |
Arm | J1 | ±160° | 50°/s |
J2 | -90°/+50° | 35°/s | |
J3 | -60°/+20° | 50°/s | |
Wrist | J4 | ±180° | 90°/s |
J5 | ±110° | 53.4°/s | |
J6 | ±360° | 105°/s |
